Advantages

• High degree of consistency of limit torque over the duration of operation through double roller principle
• Synchronous re-engagement after 360°

• Torques up to 10 000 Nm
• For shaft diameters up to 125 mm

Function

• When the preset limit torque has been reached the SIKUMAT® ratchets.
• Following elimination of overload automatic synchronous re-engagement of the SIKUMAT® to the starting position after 360°.

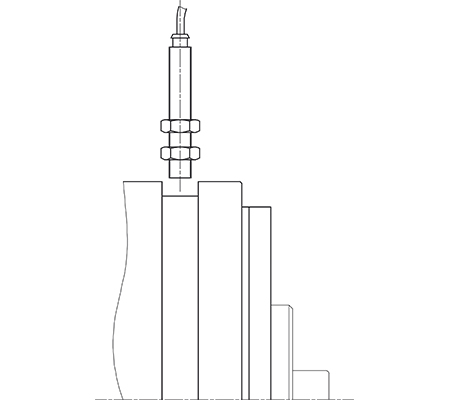

• The overload can be indicated by a proximity switch. This means that the drive can be switched off immediately or another control function can be activated.
