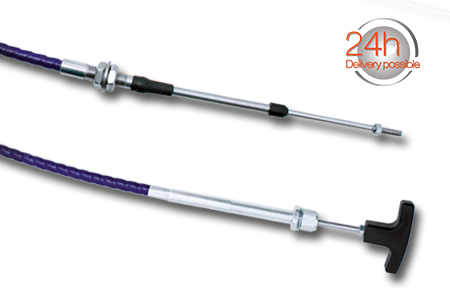

Express Push/Pull cable

  • Express Push/Pull cable Express-Druck-Zugkabel Bild
  • 284-V-T05M/T05M-3

    Features

    • Push force: 320 N (~ 32 kg)
    • Pull force: 540 N (~ 54 kg)
    • Travel: 76 mm (~ 3 inch)
    • Bending radius: 51 mm
    • Low slip-stick effect thanks to teflon coated inner member
    • V2A stainless steel connection parts
    • M5 thread on end parts
    • Diameter of cable fixture: 12 mm (7/16-20 UNF threads, nuts included)
    • Seals for protection against dirt, dust and moisture
